Bag Lifting Centrifuge

Bag Lifting Centrifuge is an improvement over the Manual Top Discharge centrifuge and is now a very popular model.

In this model the Filter Bag is fastened to the Basket top plate. The Basket Top plate is in turn locked onto the basket shell.

When the filtration is completed the Plate is removed by unlocking the plate from the basket shell and pulled out using a hoisting arrangement. The filter bag containing the product comes out of the centrifuge. The product is then moved out to a suitable location and unloaded.

The Main Advantage of this machine is that the unloading time is reduced considerably and also has less manual intervention when compared with a manual Top Discharge centrifuge. High production rates can be achieved with this machine.

In this machine the Basket Shell is slightly tapered to facilitate easy pull out of the filter bag after the process is completed.

Sizes Available: Starting from 24” Dia. up to 60” Diameter.

Materials of Construction: SS 316, SS 304, SS904L, Hastelloy & Titanium

Coating: Halar (ECTFE), Teflon (PFA), Rubber Lining, FRP Lining

Bag Lifting Centrifuges are available in the following Designs

1. Full Lid Open: In this variant the top lid of the centrifuge has a large diameter that equals the diameter of the monitor casing. This gives better access to basket inside and outer periphery (except bottom) and full access to the top cover.

2. Full Body Opening : In this model the entire top cover of the centrifuge is accessible for cleaning and visual inspection. This is an ideal model for applications involving product changeovers and special cleaning needs. The basket bottom and the Mother Liquor Drain platform can be visually seen in this model. This model is often called cGMP or sanitary model.

The Lid is opened by using Spring Operated, Pneumatically operated or Hydraulically operated systems.

Optional Extras: Nitrogen Blanketing, Vibration Limiter, RPM Sensor with Indicator, Zero Speed Interlock, Cleaning in Place (CIP), Cake thickness sensor, Pneumatic Lid Opening System, Hydraulic Lid or Body opening systems, and Bag Lifting Device.

Technical Data Sheet



BL

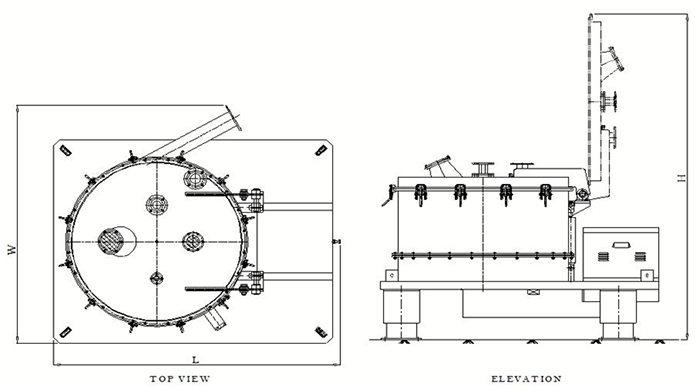

TECHNICAL DATA OF FOUR POINT SUSPENSION BAG LIFTING CENTRIFUGE

BL

VBC-BL 24" x 12 " 36" x 20" 48" x 24" 60" x 20" 60" x 24" 60" x 26" 60" x 30" Unit
Basket diameter 610 915 1210 1500 1500 1500 1500 [mm]
Basket height 300 500 610 510 610 660 750 [mm]
Filter surface Area 0.57 1.43 2.3 2.4 2.87 3.11 3.6 [m2]
Useful volume  46 172 350 500 600 650 750 [dm3]
Max. load @ Bulk Density 1.0 46 172 350 500 600 650 750 [kg]
Max. speed of Basket 1400 1100 900 800 800 800 800 rpm
Max. G force 671 620 550 540 540 540 540
Centrifuge weight (with load) 750 2300 4200 5400 5500 5600 7500 [kg]
Motor power for main drive 3 7.5 15 25 25 25 30 [HP]
Dimensions
L 1400 2050 2400 2750 2750 2750 3100 [mm]
W 1100 1600 2100 2300 2300 2300 2400 [mm]
H (Lid Open Condition) 1700 2400 2850 3150 3250 3300 3450 [mm]

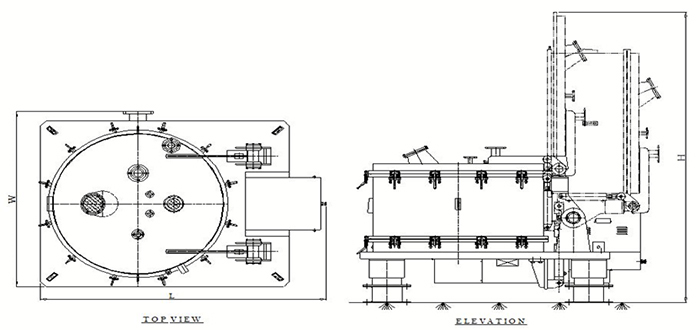

TECHNICAL DATA OF FOUR POINT SUSPENSION FULL BODY OPEN BAG LIFTING CENTRIFUGE

BL_FBO

VBC-BL FBO 36" x 18" 36" x 20" 48" x 24" 48" x 24" 60" x 20" 60" x 24" Unit
Basket diameter 915 915 1210 1210 1500 1500 [mm]
Basket height 460 510 500 610 510 610 [mm]
Filter surface Area 1.32 1.47 1.9 2.3 2.4 2.87 [m2]
Useful volume  159 176 300 350 500 600 [dm3]
Max. load 159 176 300 350 500 600 [kg]
Max. speed of Basket 1100 1100 900 900 800 800 rpm
Max. G force 620 620 550 550 540 540
Centrifuge weight (with load) 2800 3000 3800 4000 6200 6500 [kg]
Motor power for main drive 7.5 7.5 15 15 25 25 [HP]
Dimensions
L 2100 2100 2400 2400 2900 2900 [mm]
W 1600 1600 1900 1900 2350 2350 [mm]
H (Lid Open Condition) 2400 2450 2900 3050 3100 3250 [mm]
General Features
  • 4 Point Suspension: Centrifuge is mounted on four viscous Dampers.
  • Variable Frequency Drive: The operating speeds of the centrifuge are controlled by a Variable Frequency Drive. The Standard Braking System for this model is Dynamic Braking.
  • Taper Lock Pulleys: These pulleys are easier to mount and dismount.
  • Cake Washing Nozzles: Special Spray nozzles with defined conical pattern spray are provided so that the entire surface of the cake is covered uniformly with minimal quantity while maintaining repeatable washing performance.
  • Shaft Protection Sleeve: A stainless Steel sleeve is mounted on the exposed part of the shaft to protect it from corrosion.
  • Proximity Sensor: To prevent the machine from being started while the lid is open a proximity sensor is installed as a standard feature.
  • Gas Tight Design: The machine is constructed to retain a positive pressure of 400mm WC as per DIN 24400.
  • Easy Maintenance: The machine design affords minimal maintenance. Greasing points enable easy lubrication to the Bearings.
