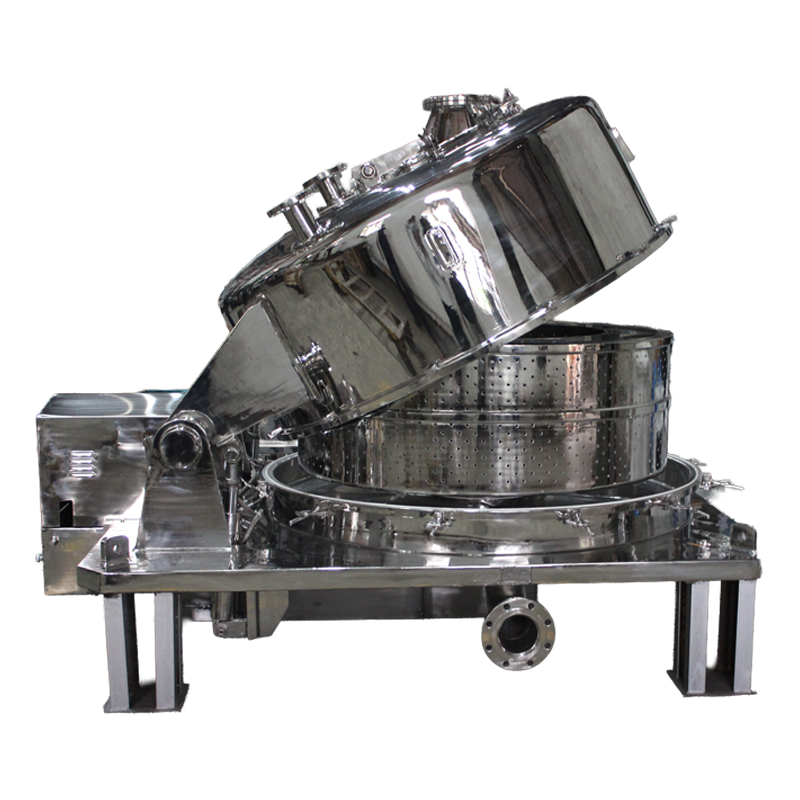

Manual Top Discharge Centrifuge
The Manual Top Discharge Centrifuge is one of the most traditional and widely used solid–liquid separation machines in the process industry. Known for its simple design, rugged construction, and proven reliability, it is ideally suited for applications where manual handling of the filter cake is acceptable.
In these machines, the slurry is loaded into a rotating basket lined with a suitable filter medium. Under high centrifugal force, the liquid phase is discharged through the perforated basket, while the solid particles are retained inside. After the cycle, the solids are manually removed from the top, making it an economical and efficient solution for batch processing.
Over the years, we have supplied manual top discharge centrifuges for a variety of applications ranging from bulk drugs and fine chemicals to food ingredients and intermediates. The design has continuously evolved to provide better safety, operational convenience, and long service life.
Key Features
Robust & Reliable
Heavy-duty construction for long, trouble-free operation
Efficient Filtration
High centrifugal force ensures excellent filtration and clarity of mother liquor.
Flexible Applications
Suitable for a wide range of products, including intermediates, bulk drugs, chemicals & food products.
Ease of Maintenance
Simple design with minimum moving parts
Advantages
- Cost-effective solution for batch filtration
- Proven, time-tested technology
- Easy to operate, clean, and maintain
- Versatile machine for small to medium batch sizes
- Reliable performance across industries worldwide
Applications
- Bulk drugs and pharmaceutical intermediates
- Fine and specialty chemicals
- Dyes, pigments, and colors
- Herbal extracts, nutraceuticals, and food ingredients
- Industrial and specialty chemicals

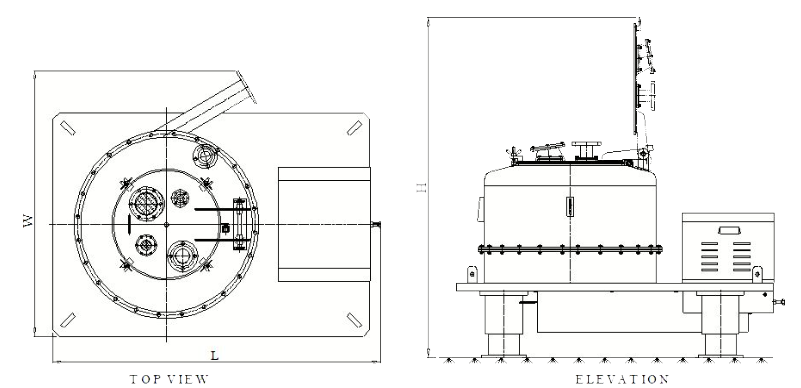

Technical Data - Top Discharge (Half Lid ) Centrifuge
| VBC-TD | 42” x 20” | 48” x 20" | 60” x 20” | Units |
|---|---|---|---|---|
|
Basket Diameter |
1067 |
1210 |
1500 |
mm |
|
Basket Height |
490 |
490 |
510 |
mm |
|
Filter Surface Area |
1.64 |
1.86 |
2.4
|
m2 |
|
Useful Volume |
221 |
300 |
500 |
Ltrs |
|
Max Load at Bulk Density 1.0 |
221 |
300 |
500 |
kg |
|
Max. speed of Basket |
1000/1300 |
900/1200 |
800/1000 |
rpm |
|
Max G Force |
596/1008 |
548/974 |
536/838 |
|
|
Centrifuge weight (with load) |
2800/3500 |
3200/4500 |
5000/6000 |
kg |
|
Motor Power for main drive |
10/15 |
15/20 |
20/25 |
HP |
|
Machine Length |
2150 |
2350 |
2800 |
mm |
|
Machine Width |
1800 |
2000 |
2300 |
mm |
|
Height (Lid Open) |
1900 |
1950 |
2150 |
mm |

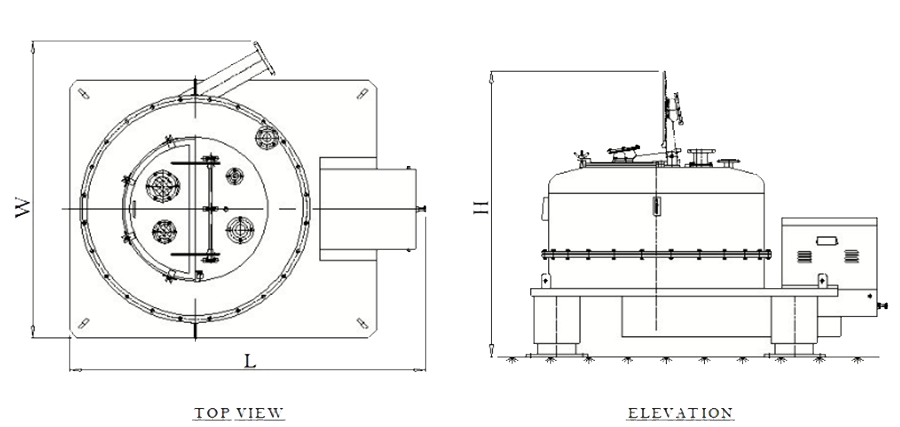

Technical Data - Top Discharge (Round Lid) Centrifuge
| VBC-TD | 24” x 12” | 32” x 16" | 36” x 18” | Units |
|---|---|---|---|---|
|
Basket Diameter |
610 |
800 |
915 |
mm |
|
Basket Height |
300 |
410 |
460 |
mm |
|
Filter Surface Area |
0.57 |
1.00 |
1.32
|
m2 |
|
Useful Volume |
50 |
100 |
159 |
Ltrs |
|
Max Load at Bulk Density 1.0 |
50 |
100 |
159 |
kg |
|
Max. speed of Basket |
1400 |
1200/1500 |
1100 |
rpm |
|
Max G Force |
668 |
644/1006 |
618/1002 |
|
|
Centrifuge weight (with load) |
700 |
1800/2200 |
2000/2500 |
kg |
|
Motor Power for main drive |
3 |
5./7.5 |
7.5/10 |
HP |
|
Machine Length |
1450 |
1900 |
2000 |
mm |
|
Machine Width |
1200 |
1550 |
1600 |
mm |
|
H (Lid Open Condition) |
1500 |
2000 |
2100 |
mm |

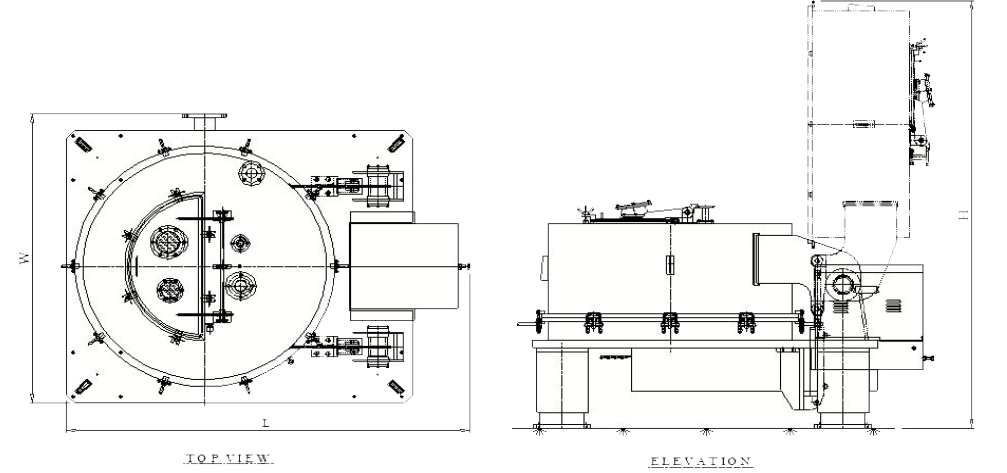

Technical Data - Top Discharge (Full Lid Open) Centrifuge
| VBC-TD FLO | 32" x 16" | 36" x 18" | 42” x 20” | 48” x 20” | 60” x 20” | Units |
|---|---|---|---|---|---|---|
|
Basket Diameter |
800 |
915 |
1067 |
1210 |
1500 |
mm |
|
Basket Height |
410 |
460 |
490 |
490 |
510 |
mm |
|
Filter Surface Area |
1.00 |
1.32 |
1.64 |
1.86 |
2.40 |
m2 |
|
Useful Volume |
100 |
159 |
221 |
300 |
500 |
Ltrs |
|
Max Load at Bulk Density 1.0 |
100 |
159 |
221 |
300 |
500 |
kg |
|
Max. speed of Basket |
1200/1500 |
1100/1400 |
1000/1300 |
900/1200 |
800/1000 |
rpm |
|
Max G Force |
644/1006 |
618/1002 |
596/1008 |
548/974 |
536/838 |
|
|
Centrifuge weight (with load) |
1900/2300 |
2100/2500 |
3000/4000 |
3400/4500 |
5200/6200
|
kg |
|
Motor Power for main drive |
5/7.5 |
7.5/10 |
10/15 |
15/20 |
20/25 |
HP |
|
Machine Length |
1900 |
2050 |
2150 |
2250 |
2800 |
mm |
|
Machine Width |
1550 |
1600 |
1800 |
2000 |
2300 |
mm |
|
Height (Lid Open) |
2200 |
2500 |
2550 |
2900 |
3200 |
mm |

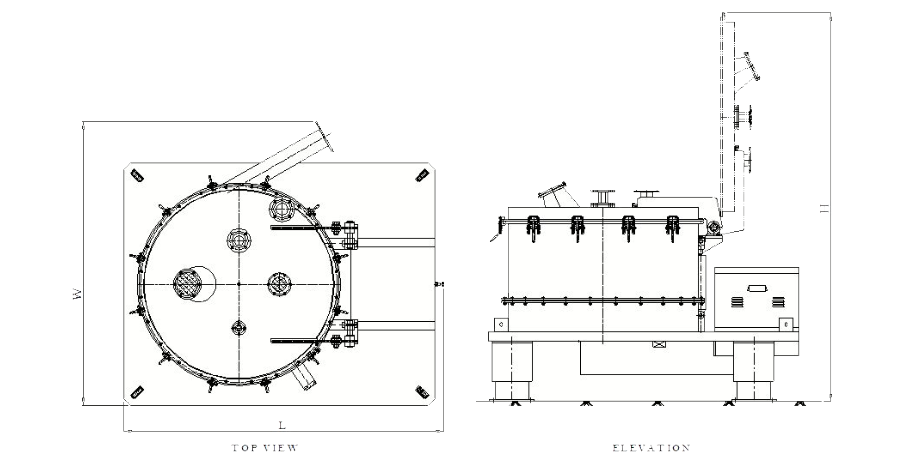

Technical Data - Top Discharge ( Full Body Open) Centrifuge
| VBC-TD FBO | 32" x 16" | 36" x 18" | 42” x 20” | 48” x 20” | 60” x 20” | Units |
|---|---|---|---|---|---|---|
|
Basket Diameter |
800 |
915 |
1067 |
1210 |
1500 |
mm |
|
Basket Height |
410 |
460 |
490 |
490 |
510 |
mm |
|
Filter Surface Area |
1.00 |
1.32 |
1.64 |
1.86 |
2.40 |
m2 |
|
Useful Volume |
100 |
159 |
221 |
300 |
500 |
Ltrs |
|
Max Load at Bulk Density 1.0 |
100 |
159 |
221 |
300 |
500 |
kg |
|
Max. speed of Basket |
1200/1500 |
1100/1400 |
1000/1300 |
900/1200 |
800/1000 |
rpm |
|
Max G Force |
644/1006 |
618/1002 |
596/1008 |
548/974 |
536/838 |
|
|
Centrifuge weight (with load) |
2000/2400 |
2200/2600 |
3200/4200 |
3500/4500 |
5400/6400
|
kg |
|
Motor Power for main drive |
5/7.5 |
7.5/10 |
10/15 |
15/20 |
20/25 |
HP |
|
Machine Length |
1900 |
2200 |
2150 |
2350 |
2800 |
mm |
|
Machine Width |
1400 |
1450 |
1650 |
1800 |
2350 |
mm |
|
Height (Lid Open) |
2000 |
2150 |
2350 |
2700 |
3000 |
mm |
