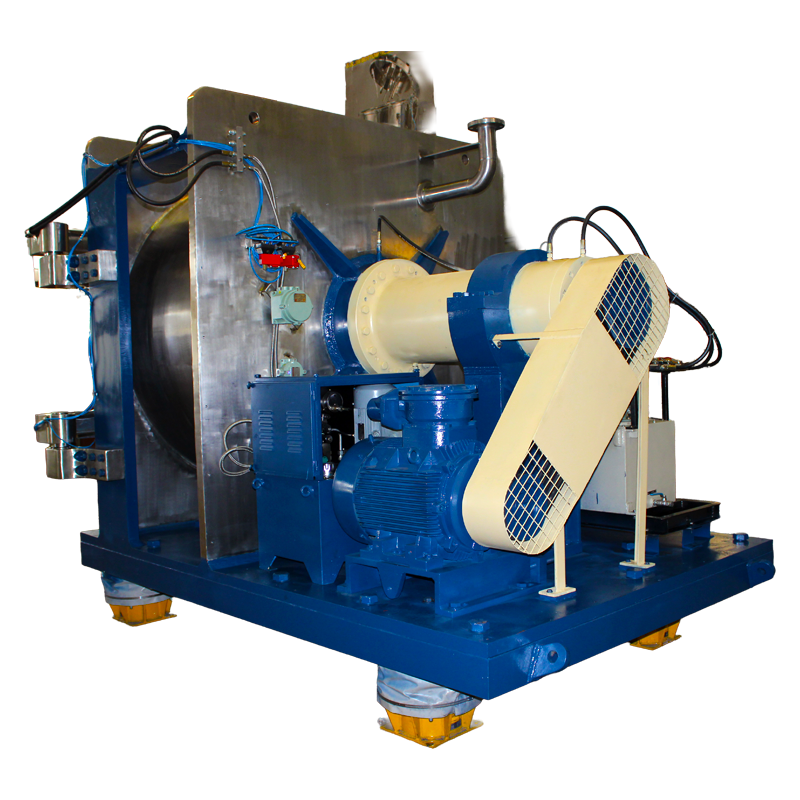

Chemical Peeler Centrifuge
The Horizontal Chemical Peeler Centrifuges are robust and high-capacity machines designed for demanding chemical process industries. These centrifuges handle a wide range of products including corrosive, abrasive, or high-density materials with consistency and reliability. With a horizontal basket and scraper discharge system, they ensure continuous operation, high throughput, and uniform cake discharge.
Unlike pharmaceutical peeler centrifuges, chemical-grade machines are optimized for rugged duty, higher cake loads, solvent handling, and aggressive environments, while still ensuring efficient solid-liquid separation. They are built for long service life with minimal downtime, making them an ideal choice for large-scale chemical production facilities.
Key Features
Horizontal Basket Arrangement
Ensures uniform cake formation with solids spread evenly across the inner basket surface. Provides improved washing efficiency and better solid size distribution.
Robust Construction & Special Metallurgy
Available in SS 316, SS 904L, Duplex, Super Duplex, Hastelloy, or other alloys for handling corrosive/abrasive chemicals. Heavy-duty design ensures durability in harsh chemical environments.
Fully Openable Hinged Lid
Enables easy access to basket and internals for maintenance. Simplifies filter cloth change and inspection.

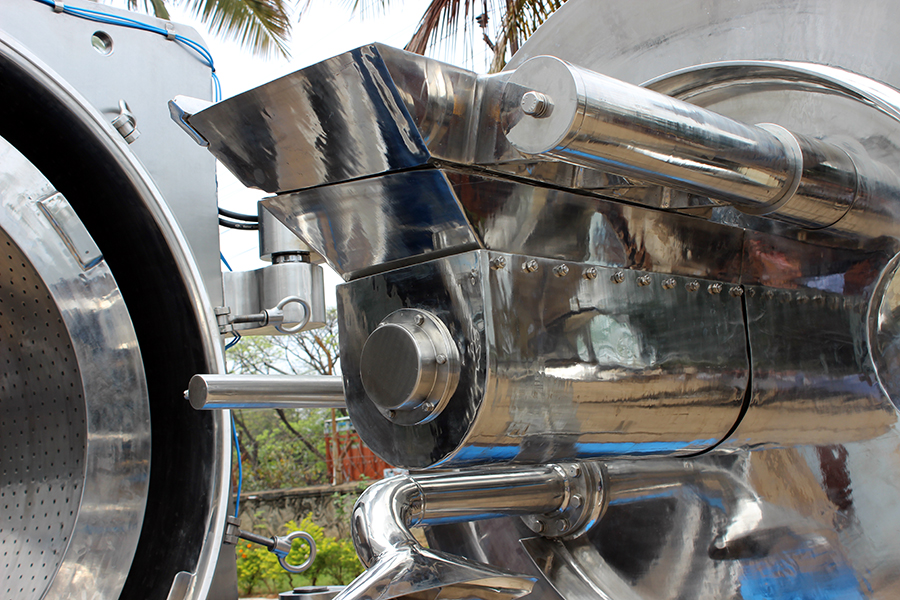

Hydraulically Operated Scraper Knife
Scrapes cake from basket wall at low basket speed. Mechanically limited to prevent damage to the basket shell.
Residual Heel Removal System
Air or nitrogen blow-off nozzles dislodge the thin cake layer left after scraping. Ensures a clean basket for subsequent batches.
Filter Bag & Backing Cloth System
Filter bags are secured with tension rings or screws. Backing mesh prevents distortion during scraping.
High Rotational Speed Capability
Allows faster separation, lower residual moisture, and effective cake washing. Improves product purity and reduces drying load.
Short Cycle Time Operation
Reduced acceleration and braking time. Lower wear and power consumption.
Advantages
- High Throughput & Efficiency: Short cycle times maximize batch productivity. Continuous discharge of filtrate maintains high filtration rates.
- Superior Cake Washing & Drying: Horizontal basket arrangement and high centrifugal forces ensure thorough washing and low residual moisture.
- Operational Flexibility: Handles a wide range of slurries, including corrosive and abrasive materials. Suitable for fine chemicals, bulk intermediates, and specialty products.
- Low Maintenance & Easy Operation: Fully openable lid for quick cleaning and filter cloth changes. Hydraulic scraper ensures safe, automated cake removal.
- Improved Safety & Reliability: Mechanical limits on scraper prevent basket damage. Heel removal system ensures cleaner operation and repeatable performance.
- Cost-Effective Performance: Reduced power consumption and wear due to efficient design. Long service life with robust metallurgy choices.
Applications
- Bulk & Specialty Chemicals
- Agrochemicals & Pesticides
- Dyes & Pigments
- Petrochemicals & Polymers
- Fertilizers & Intermediates
- Resins & Plastics
Technical Data - Chemical Peeler Design
| HPC | 40" X 20" | 50” x 25” | 50” x 32" | 60" x 32" | 64 "x 40" | Units |
|---|---|---|---|---|---|---|
|
Basket Diameter |
1000 |
1250 |
1250 |
1500 |
1600 |
mm |
|
Basket Height |
500 |
630 |
800 |
1000 |
1000 |
mm |
|
Filter Surface Area |
1.57 |
2.47 |
3.14 |
3.77 |
5.03 |
m2 |
|
Useful Volume |
172 |
326 |
415 |
640 |
880 |
Ltrs, |
|
Max Load at Bulk Density 1.0 |
172 |
326 |
415 |
640 |
880 |
kg |
|
Max. speed of Basket |
1500 |
1200 |
1200 |
1000 |
950 |
rpm |
|
Max G Force |
1258 |
1006 |
1006 |
838 |
807 |
|
|
Centrifuge weight (with load) |
1000 |
12000 |
12500 |
20000 |
22500 |
kg |
|
Motor Power main drive |
30 |
50 |
50 |
60 |
75 |
HP |
|

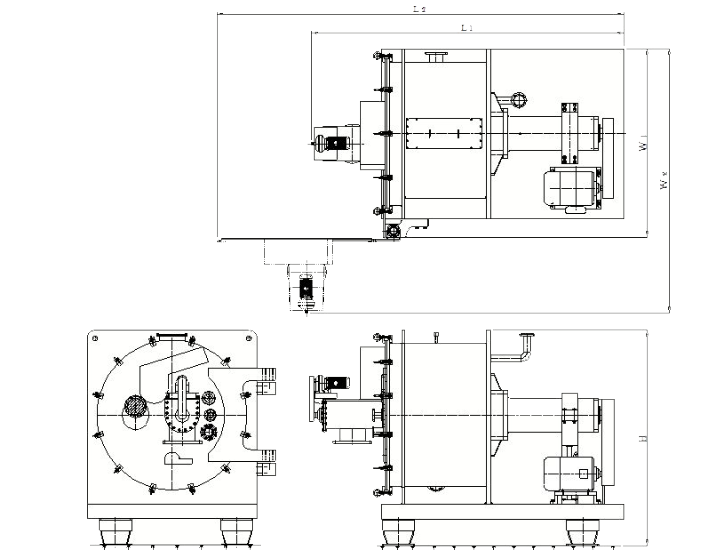

L1 (Lid Closed) |
2400 |
3000 |
3250 |
3800 |
4000 |
mm |
|
L2 (Lid Open) |
3500 |
4200 |
4400 |
4900 |
5250 |
mm |
|
W1 (Lid Close) |
1700 |
2200 |
2200 |
2350 |
2350 |
mm |
|
W2 (Open) |
2500 |
3000 |
3000 |
3500 |
3600 |
mm |
|
H |
2000 |
2400 |
2400 |
2700 |
3000 |
mm |
